Magnet Material

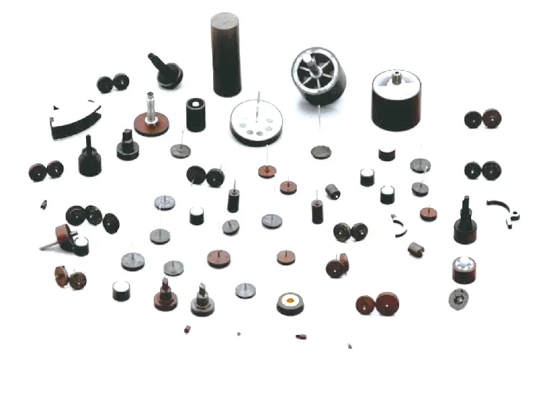

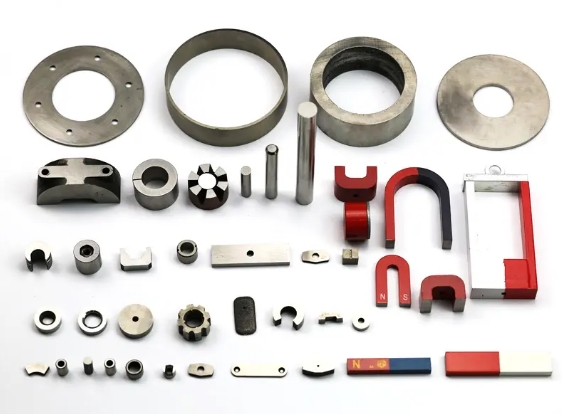

  • We have strong sintered AlNiCo permanent magnet production scale, can produce the performance


    of Alnico2-8 grades. And annual output nearly 800 tons. AlNiCo magnet is suitable for producing complex, light, thin, and small products, and is widely used in instrumentation, communications, magnetoelectric switches, and various sensors.


    AlNiCo products are mainly used in automotive parts, instrumentation, electroacoustics, motors, nuclear power, teaching, aerospace and other fields. It has the characteristics of low temperature coefficient, high temperature resistance, humidity resistance, not easy to oxidize and good working stability.

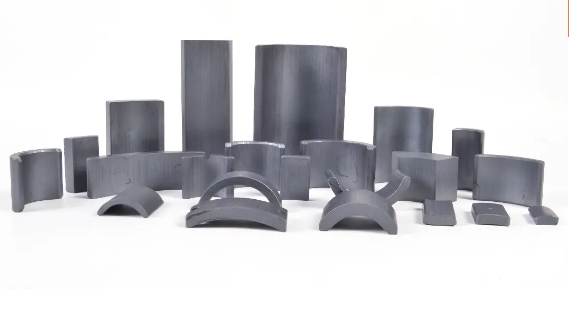

  • Ferrite
    The main raw material of sintered ferrite is iron oxide, so it will not be corroded by high temperature, high humidity or chemicals (except strong acids and alkalis); sintered ferrite mainly includes barium ferrite (BaO•6Fe2O3) and strontium Ferrite (SrO•6Fe2O3) two types; sintered ferrite is divided into isotropic and anisotropic. Isotropic sintered ferrite has weak magnetic properties, has the same magnetic properties in any direction, and can be multi-pole magnetized in any direction; anisotropic sintered ferrite has higher magnetic properties than isotropic and can only be shaped Magnetization in the direction of magnetic field orientation;

    Sintered ferrite has excellent demagnetization resistance and no magnetic flux loss before and after assembly and magnetization; the operating temperature of sintered ferrite is -40°C to +250°C.
  • Precision: CHINA

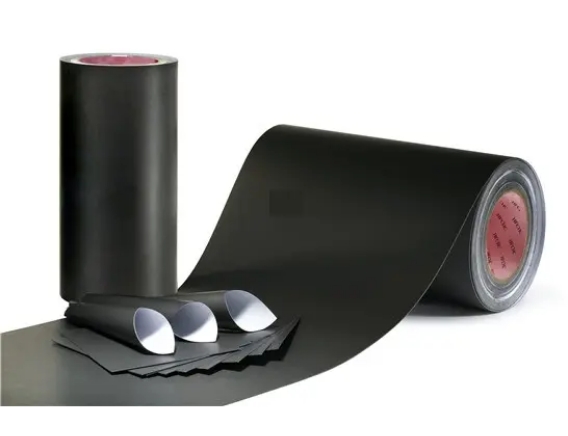

    A25000 are magnetic powers filled into polymer resins serviced with flexible and thin performances
    Applied to non conductive tape, Offered the best insulation and install properties.



    Available in very narrow spaces.

    Flexible to die cut various shapes with the removable release liner
  • Our company specializes in the production of various high-precision and complex-shaped bonded Ferrite/ NdFeB magnets, and is good at injecting complex-shaped magnets or iron parts, copper parts, plastic parts, housings, shafts and other integral injection molding.

    More than 10 years of experience can better design the magnetic circuit close to the needs of customers. A variety of magnetizing coils are designed and manufactured. The shape of the magnetizing wave can be sine wave and square wave according to the requirements. Rich magnetization technology, radiation magnetization, multi-pole Magnetization, slope magnetization, composite magnetization and encoder magnetization, etc.

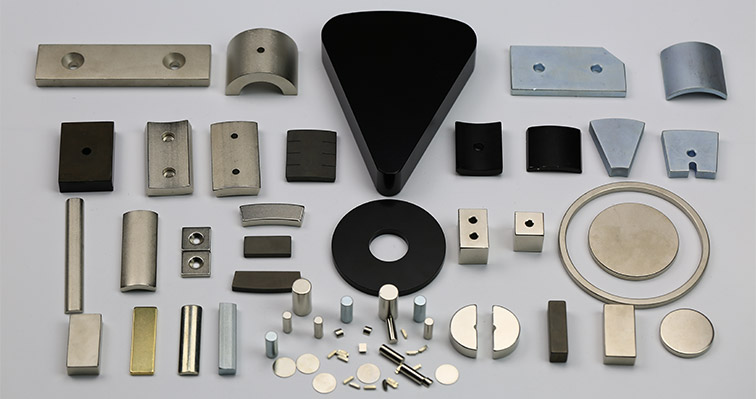

  • NDFEB

    NdFeB Material has main constituent is Nd2Fe14B, which has high magnetic performance.
    Its maximum energy density(BHmax)is over 10 times as high as that of ferrite magnet; maximum working temperature up to 250 centigrade. Also, it has good mechanical behavior, which can be suitable for grinding, wire cutting and drilling and other different processing methods; Due to the weak corrosion resistance, the surface must use the different coating to match the different requirement.( such as coated Zn,Ni,Au,Parylene,Epoxy,Everlube, Dacromet, Ni-Zn alloy coating etc.)
    Our company has speical advantage in magnetic and physical property control.
